RCZ-6N Intelligent Dissolution Tester – Pharma Lab Equipment for Dissolution Testing

Dissolution Instruments

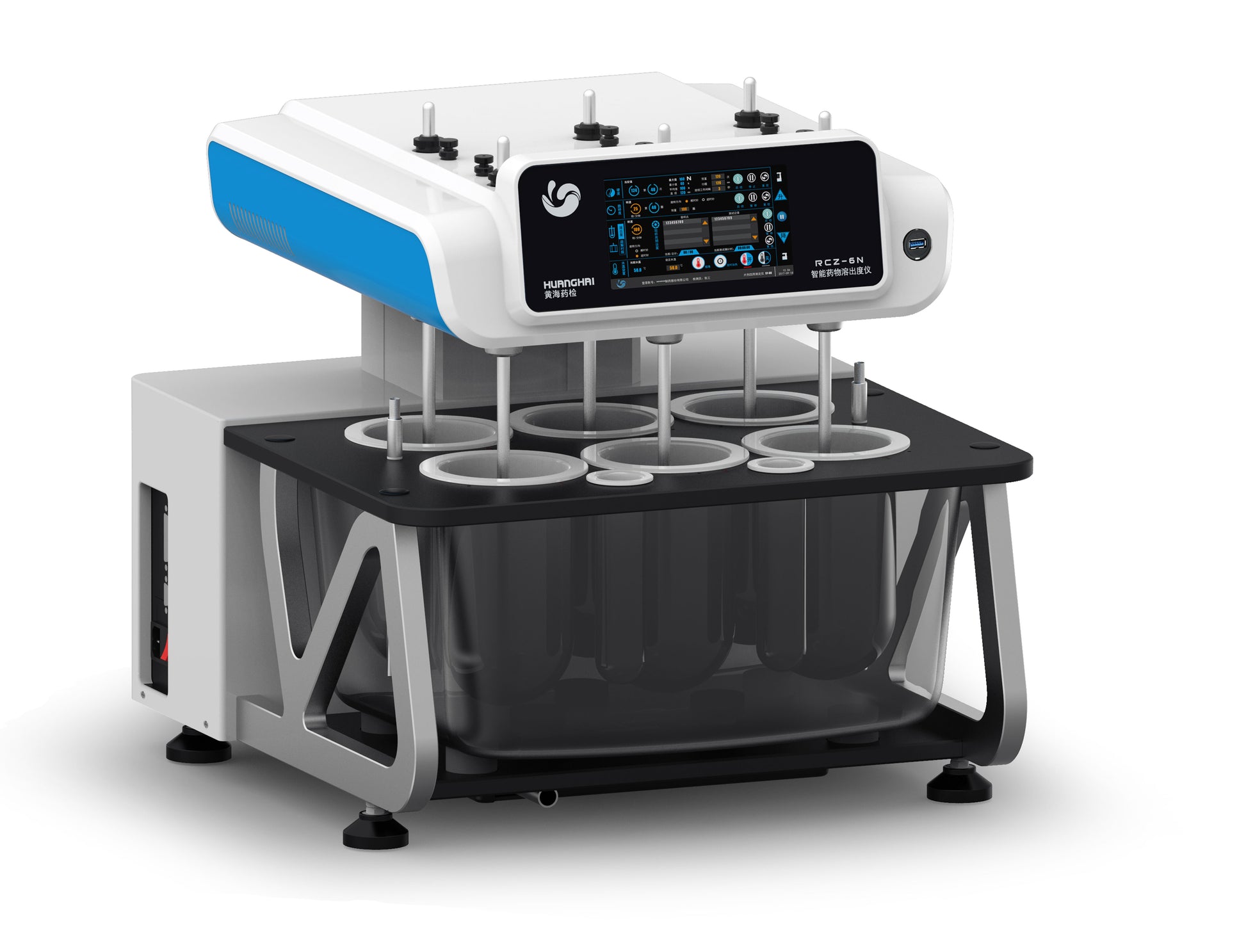

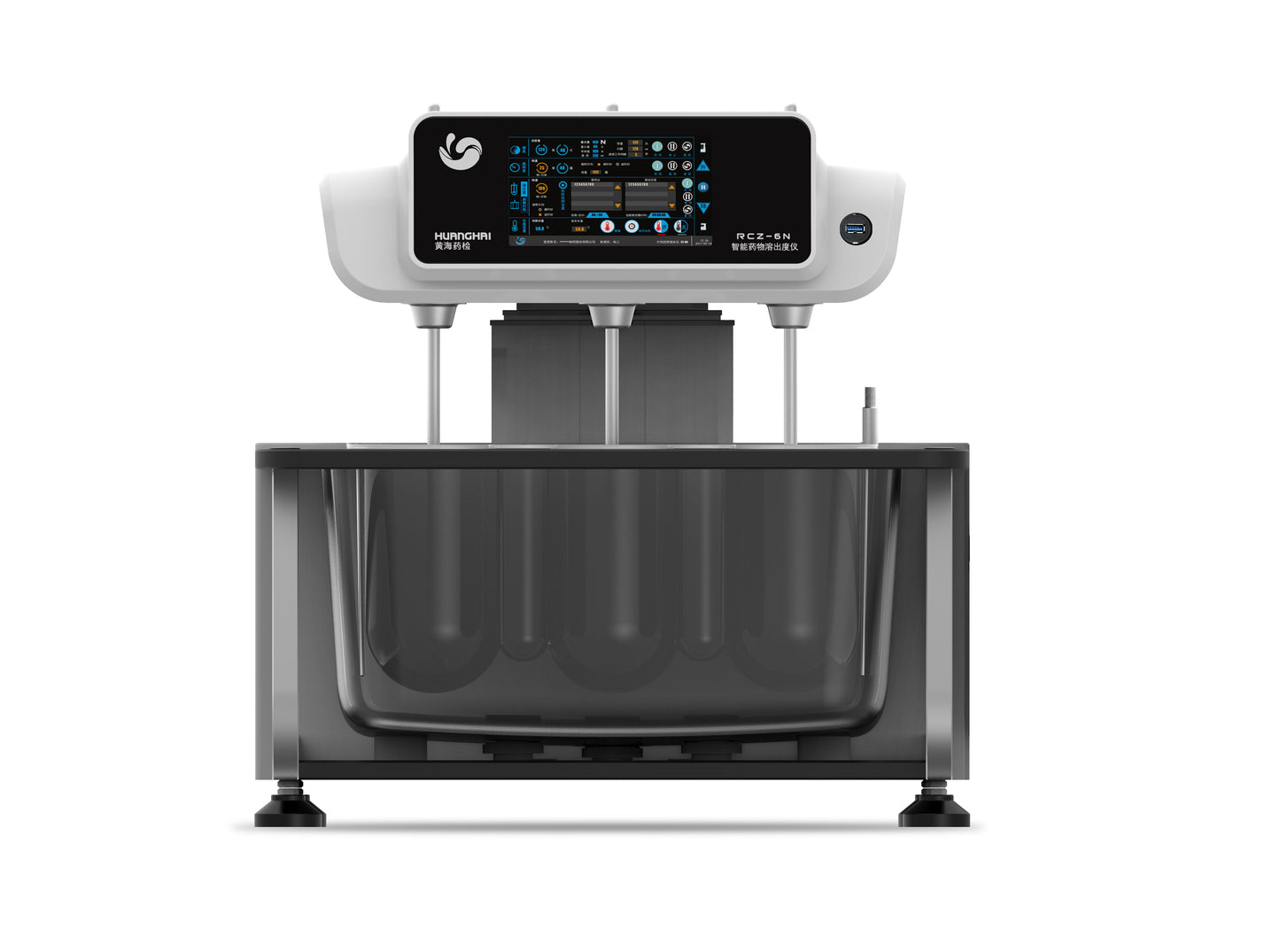

RCZ-6N Intelligent Pharmaceutical Dissolution Tester

The RCZ-6N Intelligent Dissolution Tester is an advanced pharmaceutical testing instrument designed for reliable and automated drug dissolution testing. With intelligent control and precise temperature regulation, it is suitable for pharmaceutical laboratories and R&D departments. This dissolution tester complies with USP requirements and enhances efficiency in pharmaceutical quality control processes.

Description

The RCZ-6N Intelligent Pharmaceutical Dissolution Tester fully complies with the latest Chinese Pharmacopoeia and United States Pharmacopeia standards, as well as the Mechanical Validation Guidelines for Dissolution Testers. This 6-channel high-performance dissolution testing system ensures precise and reliable pharmaceutical testing with complete data integrity.



Product Features



1. Advanced Data Management

   •  Built-in three-tier user permissions, audit trails, and test record management.

   •  USB connectivity supports direct test data export for reporting.

   •  Frequently used data and sampling solutions can be stored for convenient reuse.



2. High-Precision Dissolution Control

   •  Real-time temperature control with dual-layer protection for stability and accuracy.

   •  Preheating functionality allows users to schedule start times for heating.



3. Optimized Sampling System

   •  Supports both manual and automatic drug addition and sampling.

   •  Advanced circulation pipeline with professional-grade quick-release connectors.

   •  Compatible with 2×150ml dissolution vessels for specialized testing.



4. Compliance and Certification

   •  Fully compliant with pharmacopoeia standards.

   •  Includes IQ/OQ certification documentation.

   •  Optional mini-paddle accessories available for specialized dissolution tests.



Product Specifications

l   Parameter    Specification

l   Model    RCZ-6N

l   Product Number 10100105

l   Dissolution Channels  6 channels

l   Swing Radius Consistency ≤0.5mm

l   Rotation Speed Deviation ≤1.0mm

l   Axial Deviation   ≤1.0mm

l   Speed Range      10–300 RPM

l   Stability ≤1%

l   Adjustment Range     Room temperature to 45.0°C

l   Temperature Uniformity     0.1°C

l   Control Precision ±0.3°C

l   Sampling Volume       <100ml

l   Sampling Time     ≤999.9h/59min59s

l   Power Supply       AC220V±10%, 50Hz

---

📄 Download User Manual

You can download the full user manual of the RCZ-6N Tablet Hardness Tester below:

📥 Click here to download RCZ-6N User Manual (PDF)
