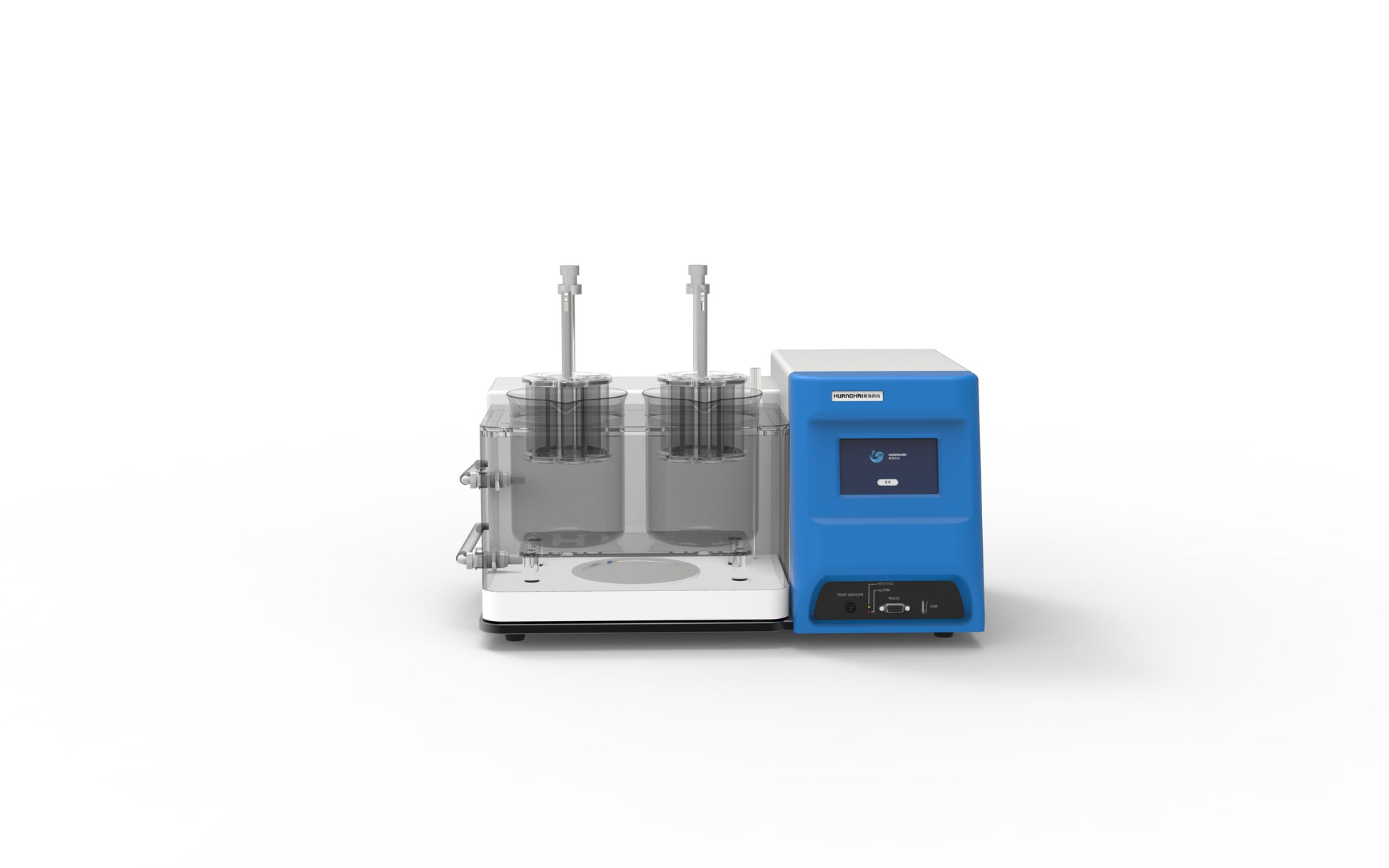

LB-2D Disintegration Tester

The LB-2D Disintegration Tester is a reliable pharmaceutical testing instrument designed to evaluate the disintegration characteristics of tablets and capsules. Meeting USP standards, this disintegration tester offers straightforward operation and precise control, making it a valuable tool for pharmaceutical quality control and research laboratories. Incorporating the LB-2D into your suite of pharmaceutical testing instruments ensures adherence to regulatory requirements and enhances the accuracy of your pharmaceutical analysis.

Description

The LB series disintegration tester has been applied in the field of pharmaceutical analysis for over 40 years. Fully compliant with the latest Chinese Pharmacopoeia standards, it is specifically designed to test the disintegration properties of solid dosage forms such as tablets, sugar-coated tablets, film-coated tablets, enteric-coated tablets, pills, and capsules under specified conditions.



Product Features



1. User-Friendly Interface

   •  Touch-screen human-machine interface for intuitive operation.

   •  Bilingual (Chinese and English) interface to meet the diverse needs of users.



2. Advanced Data Management

   •  USB connectivity for exporting test data and generating reports.



3. High-Precision Temperature Control

   •  Real-time temperature monitoring with dual-layer temperature protection and calibration functionality.



4. Compliance and Certification

   •  Fully compliant with pharmacopoeia standards.

   •  Includes IQ/OQ certification documentation for validation.



Product Specifications



l   Parameter    Specification

l   Model    LB-2D

l   Product Number 10107106

l   Disintegration Stations       2 stations (6 tubes)

l   Basket Reciprocation Speed   30–32 strokes/min

l   Basket Reciprocation Range   55±1.0mm

l   Minimum Basket Distance 25±1.0mm

l   Sieve Aperture    Standard: 0.42mm, Optional: 0.71mm, 1.0mm

l   Adjustment Range     Room temperature to 45.0°C

l   Temperature Uniformity     0.1°C

l   Control Precision ±0.3°C

l   Cycle Limit   <15 cycles

l   Cycle Time   ≤9999 minutes

l   Power Supply       AC220V±10%, 50Hz



---

📄 Download User Manual

You can download the full user manual of the LB-2D Disintegration Tester below:

📥 Click here to download LB-2D User Manual (PDF)
