YPD-350N Intelligent Tablet Hardness Tester – High-Precision Pharmaceutical Testing Instrument

Tablet Friability Instruments

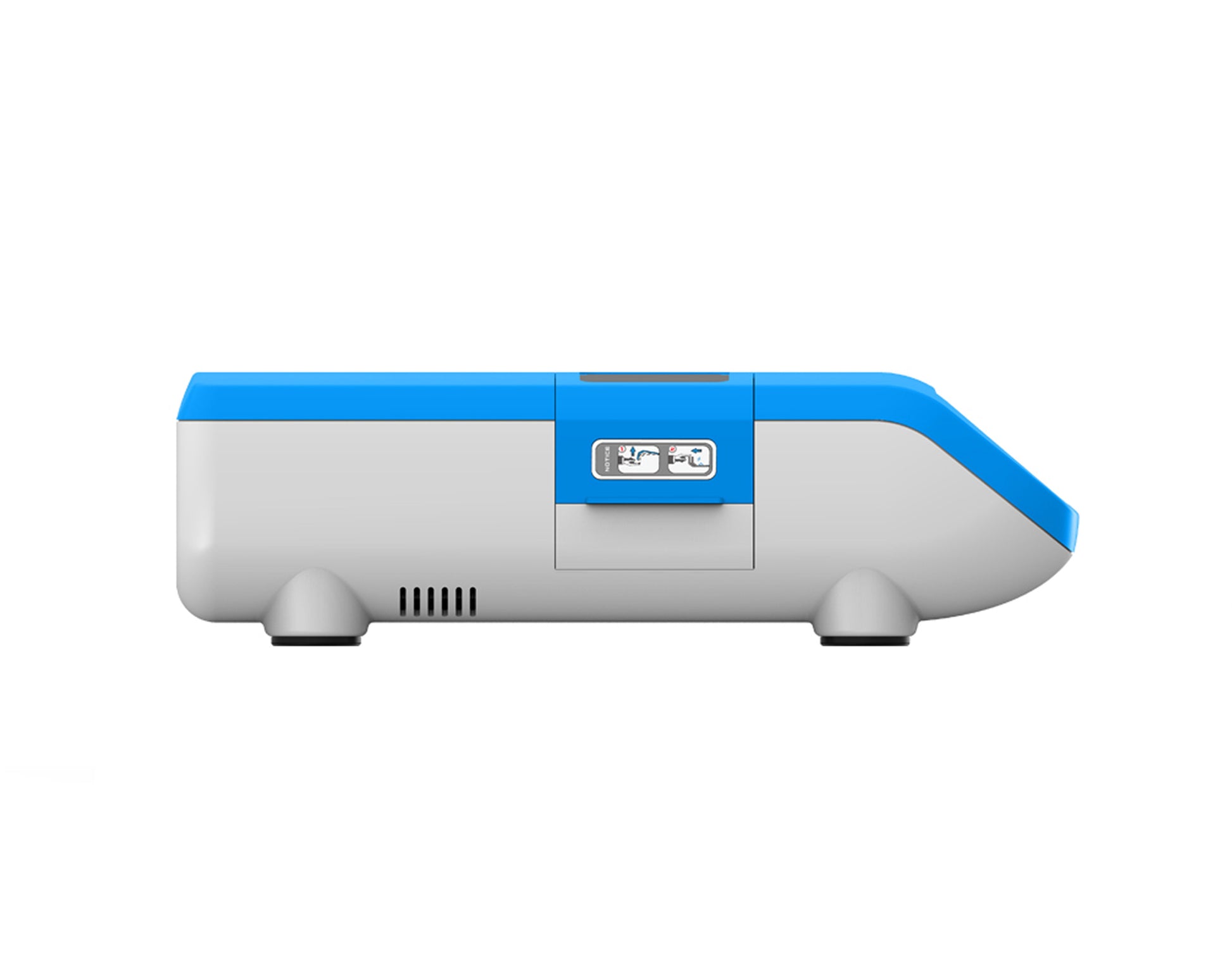

YPD-350N Intelligent Tablet Hardness Tester

The YPD-350N Intelligent Tablet Hardness Tester is a state-of-the-art pharmaceutical testing instrument designed to accurately measure the hardness of tablets. This tablet hardness tester ensures that tablets meet required mechanical strength for packaging and transportation. Widely used in pharmaceutical quality control laboratories, the YPD-350N provides reliable data to maintain product integrity and compliance with industry standards.

Description

The tablet hardness test plays a vital role in the development, production, and quality control of pharmaceutical products. The YPD-350N model accurately measures the maximum, minimum, and average hardness values of tablets. It also automatically records and stores test data, ensuring precise and efficient quality assessment.



Customizable options are available for 500N and 700N models.



Product Features



1. Advanced Data Management

   •  Built-in three-tier user permissions, audit trails, and test record management.

   •  USB connectivity for exporting test data and generating reports.



2. Precision and Reliability

   •  Automatically records and calculates maximum, minimum, and average values for accurate analysis.

   •  Updated sensor system ensures consistent measurement accuracy.



3. High-Speed Testing

   •  Completes a single test cycle in less than 15 seconds.

   •  Supports up to 1000 consecutive tests with uninterrupted operation.



4. User-Friendly Design

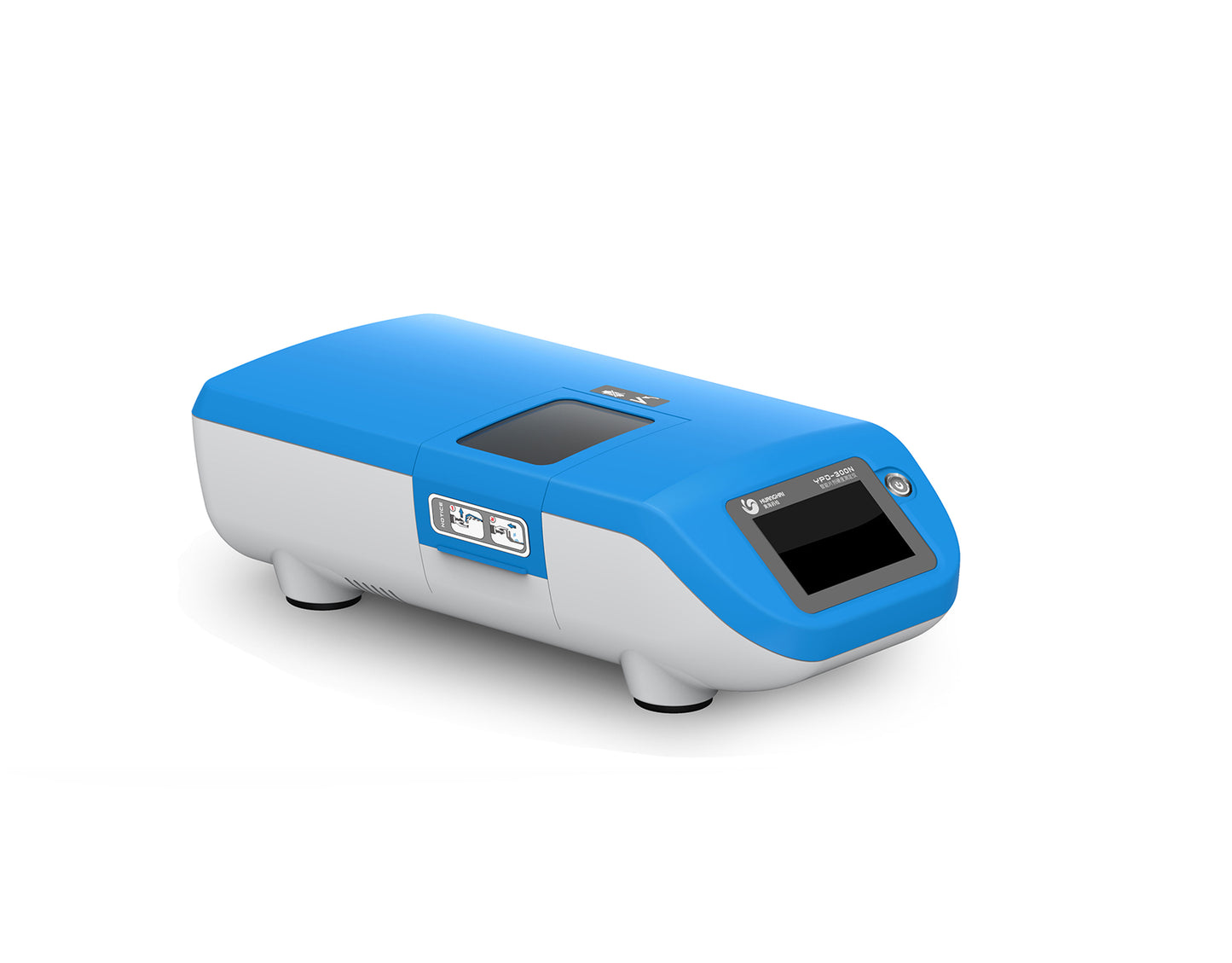

   •  Equipped with a touch-screen human-machine interface for ease of operation.

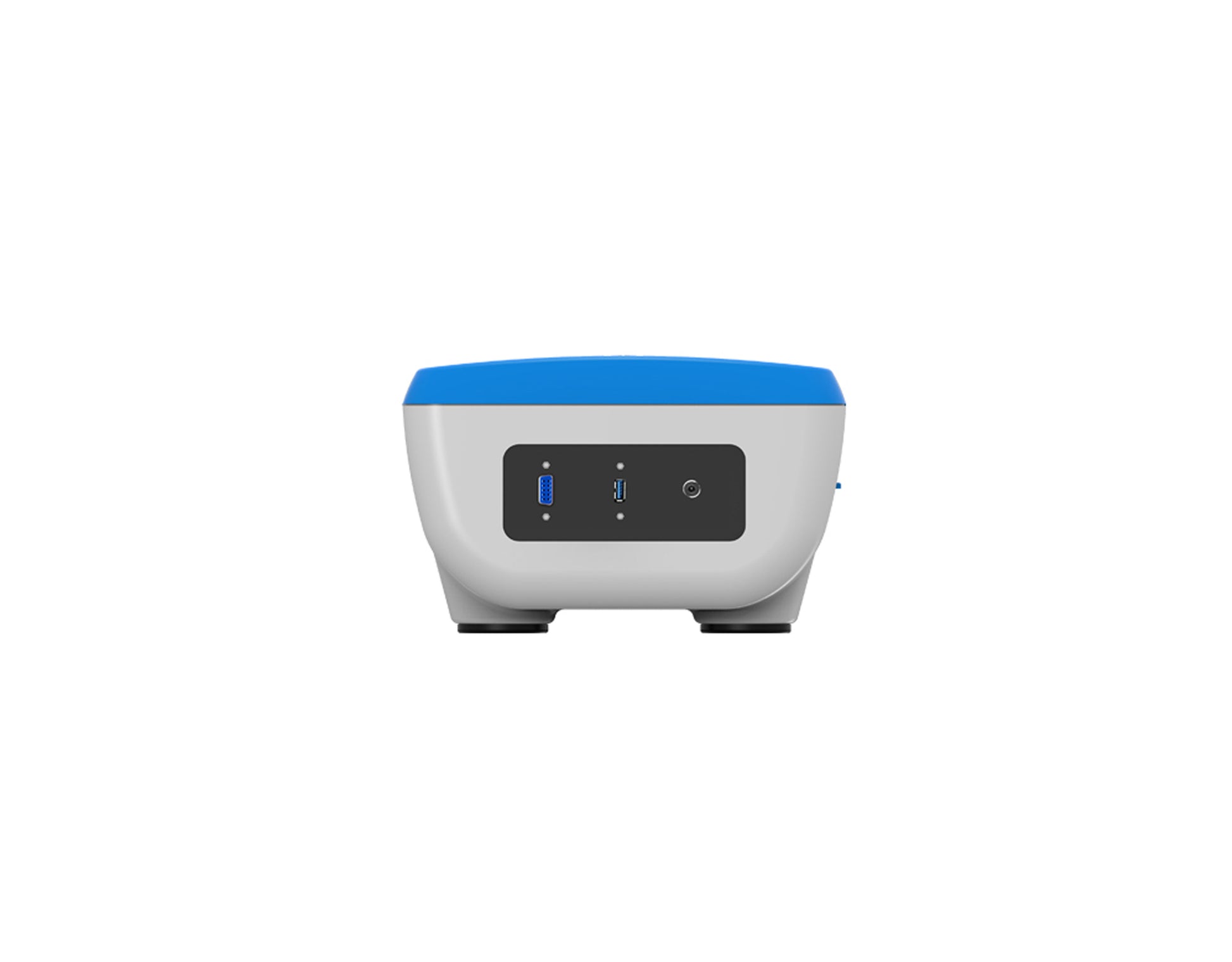

   •  Compact and portable design with DC12V power supply and universal voltage adapter.



5. Compliance and Certification

   •  Includes IQ/OQ certification documentation for validation.



Product Specifications



l   Parameter    Specification

l   Model    YPD-350N

l   Product Number 10103104

l   Hardness Measurement Range       10–350N

l   Resolution     0.01N

l   Accuracy     ±1.5% ±1 digit

l   Unit N/kg (customizable)

l   Testing Method    Single test/Continuous test (up to 1000 cycles)

l   Tablet Diameter Range     2–25mm

l   Diameter Resolution   0.1mm

l   Diameter Accuracy   ±0.1mm

l   Power Supply       DC12V, 3.0A



---

📄 Download User Manual

You can download the full user manual of the YPD-350N Intelligent Tablet Hardness Tester below:

📥 Click here to download YPD-350N User Manual (PDF)
