CJY-300E Tablet Friability Tester – Accurate Pharmaceutical Durability Testing Instrument

Tablet Friability Instruments

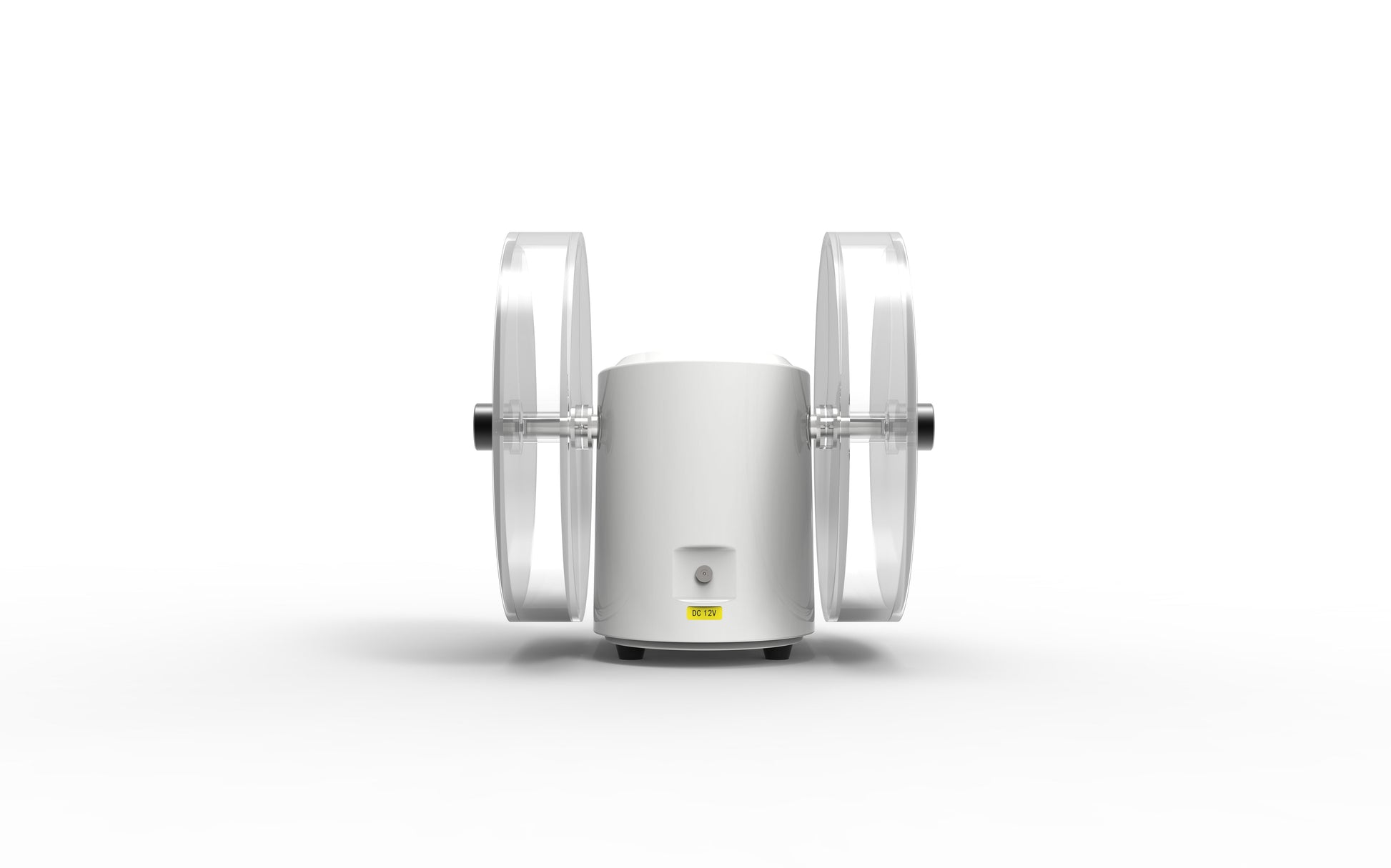

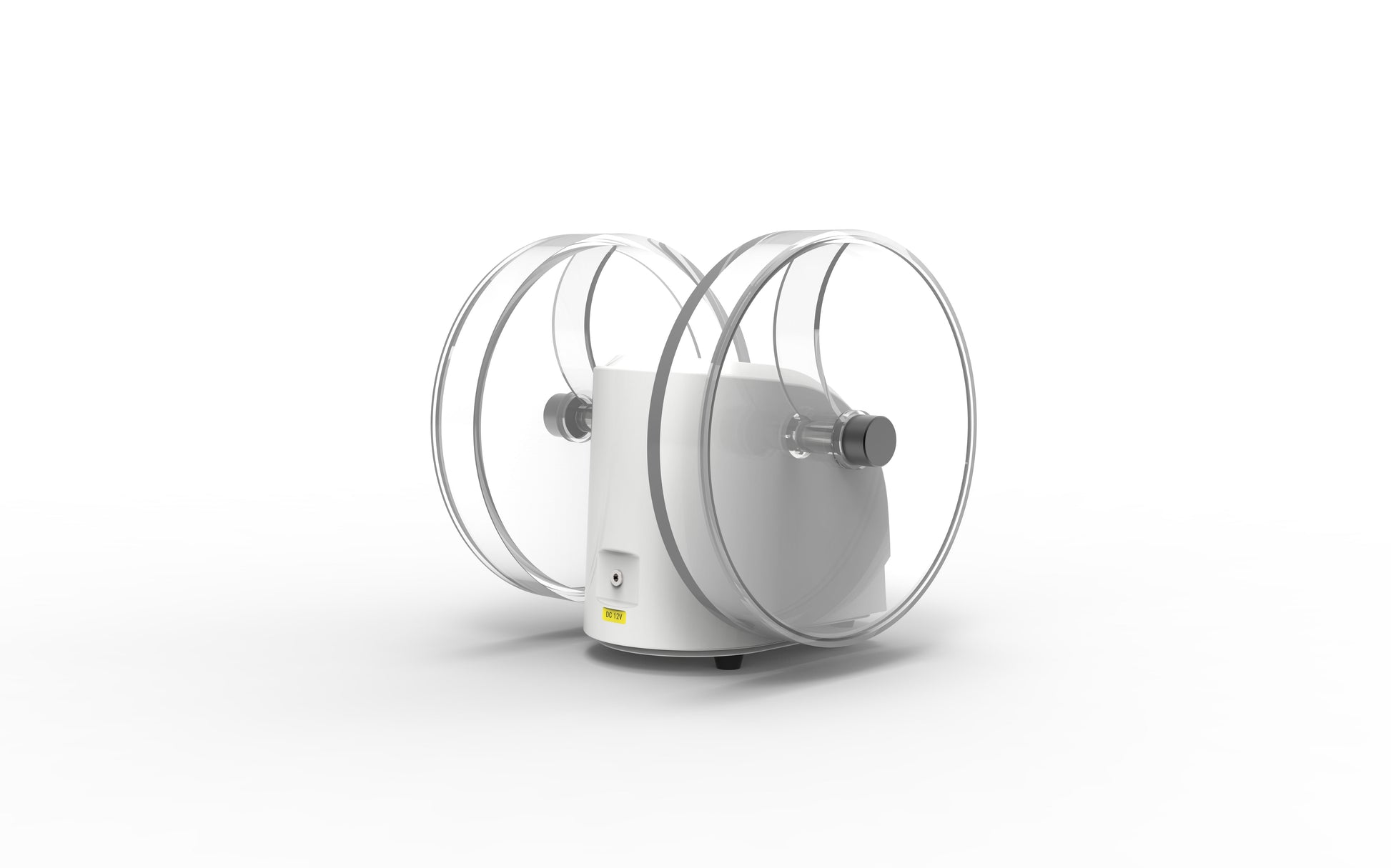

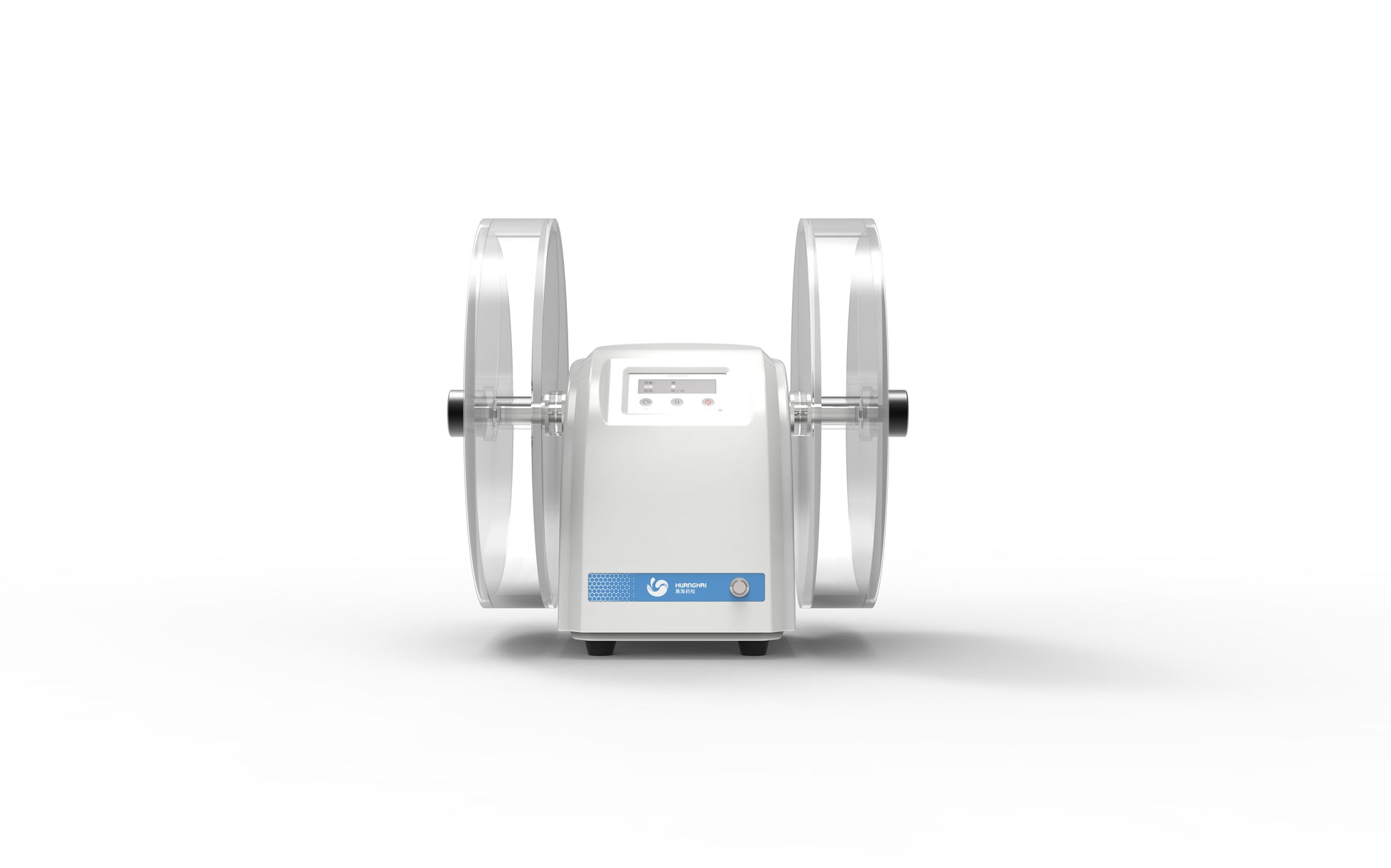

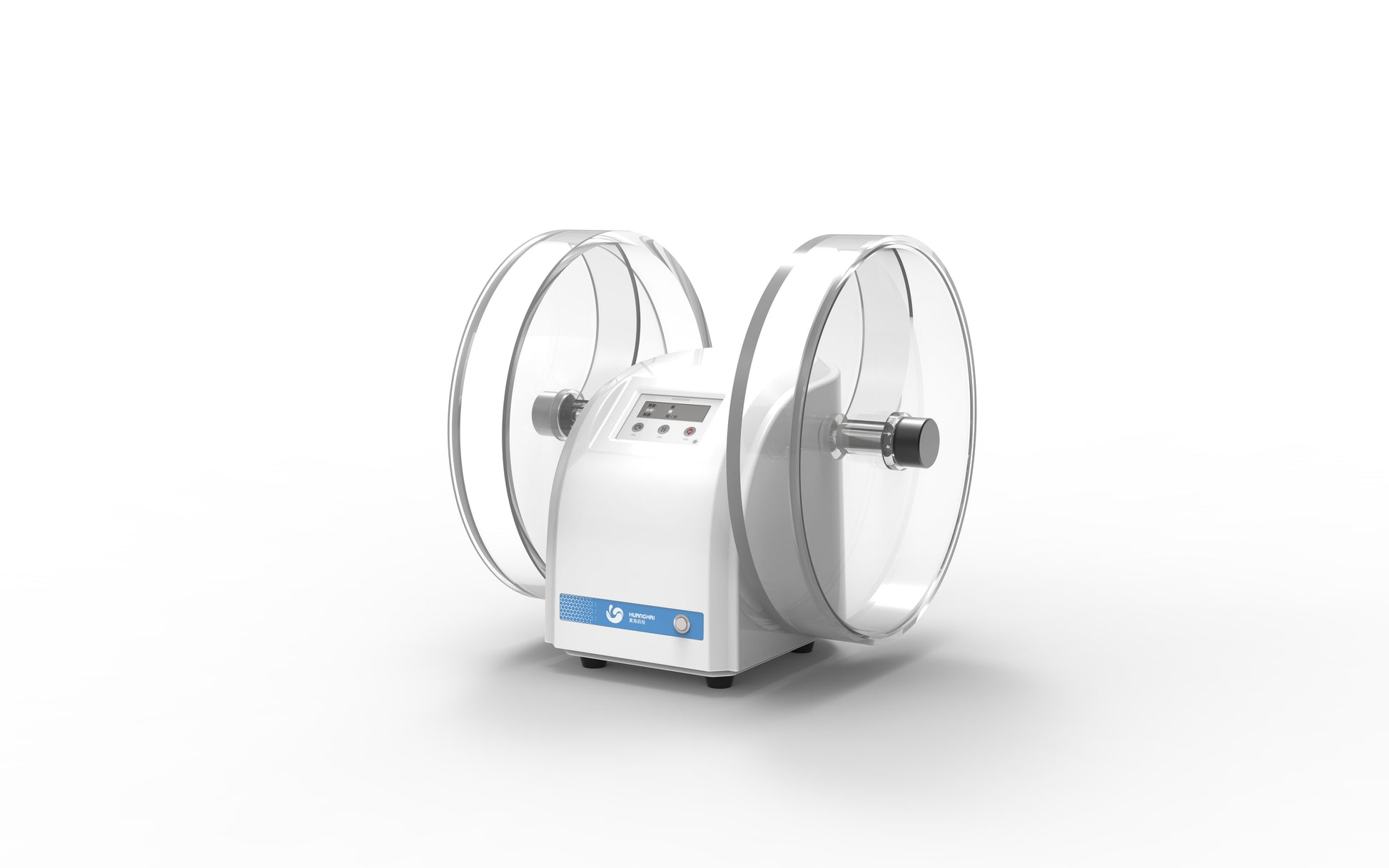

CJY-300E Tablet Friability Tester

The CJY-300E Tablet Friability Tester is an advanced pharmaceutical testing instrument used to assess the friability of tablets. Friability testing is vital to determine a tablet's resistance to abrasion and breakage during handling and transportation. The CJY-300E provides precise measurements, aiding pharmaceutical quality control laboratories in ensuring tablet durability and compliance with industry standards.

Description

The CJY-300E Tablet Friability Tester complies with the standards of the Chinese Pharmacopoeia and is designed for use in pharmaceutical manufacturing, research institutes, and hospitals. It evaluates the stability, abrasion resistance, and physical strength of tablets, making it an indispensable instrument for pharmaceutical quality testing.



Product Features



1. User-Friendly Design

   •  Equipped with a touch-screen human-machine interface for easy and intuitive operation.

   •  Bilingual (Chinese and English) interface to meet diverse user needs.



2. Precision and Reliability

   •  Adjustable rotation speed and customizable rotation range for flexible testing.

   •  Supports both clockwise and counterclockwise rotation for comprehensive evaluation.



3. Efficient and Safe Operation

   •  Operates quietly with low power consumption for enhanced safety and efficiency.

   •  Utilizes DC12V power supply with universal voltage adapter, ensuring reliability and compatibility.



4. Compliance and Certification

   •  Includes IQ/OQ certification documentation for validation.



Product Specifications



Parameter     Specification

l   Model    CJY-300E

l   Product Number 10102102

l   Number of Drums        2 drums

l   Drum Dimensions        Inner Diameter: 286mm, Depth: 39mm

l   Default Rotation Speed     25 RPM

l   Rotation Speed Range      20–50 RPM

l   Default Rotation Count      100 cycles

l   Rotation Count Range       1–1000 cycles

l   Rotation Direction        Clockwise/Counterclockwise

l   Power Supply       DC12V, 3.0A



---

📄 Download User Manual

You can download the full user manual of the CJY-300E High-Speed Tablet Counting Machine below:

📥 Click here to download CJY-300E User Manual (PDF)
