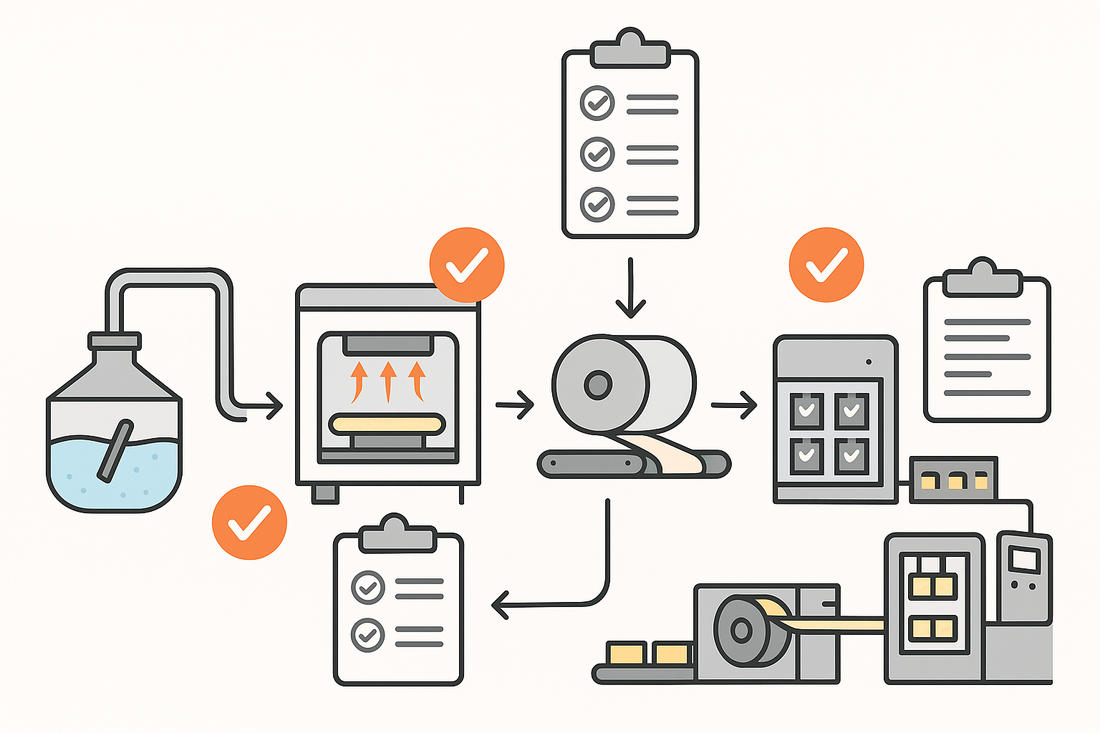

Flat illustration of a complete ODF production line from solution preparation to coating, drying, slitting and packaging, with checklists indicating validation steps.

ODF Line Validation Checklist: From URS to FAT, SAT, and IQ/OQ/PQ

In an orally disintegrating film (ODF) line, true validation goes far beyond individual machines. From solution preparation and coating to slitting, pouching, and final packaging, the entire line must be treated as one system with a consistent logic for requirements, testing, and documentation.

Many pharma teams already have a robust validation methodology for single units such as laser drilling lines. The next step is to migrate that systematic approach to the full ODF line—so that URS, FAT, SAT, and IQ/OQ/PQ form a continuous chain instead of isolated documents.

This checklist summarizes key pitfalls, line-level validation priorities, and how HUANGHAI supports end-to-end ODF line validation based on its commercial experience with Complete ODF Film Manufacturing Solutions.

Common Gaps in ODF Line Validation

Even when each machine is validated, gaps often appear when regulators or auditors look at the line as a whole. Typical issues include:

1. URS Not Specific Enough

  • Capacity is described only in broad terms, without clear assumptions on batch size, speed, or uptime.
  • Film dimensions, cutting tolerances, and pouch specifications are not quantified.
  • Traceability, batch record structure, and data architecture are not expressed as explicit requirements.

2. FAT and SAT Are Not Aligned

  • Factory Acceptance Test (FAT) is run with one set of materials and utilities, while Site Acceptance Test (SAT) uses another.
  • Environmental conditions (temperature, humidity) and film moisture targets are not harmonized between FAT and SAT.
  • Key operating modes are tested at one stage but not the other, leading to repeated or incomplete verification.

3. Documentation and Training Lag Behind

  • IQ/OQ/PQ documentation is prepared late, after mechanical installation, compressing the schedule.
  • Operators and maintenance staff are trained on “how to run” the line, but not on how to execute and document validation tests.
  • Batch records and SOPs are not ready when PQ starts, forcing manual workarounds that are hard to defend in audits.

Building a Line-Level Validation Checklist

To avoid these gaps, it helps to think of validation as a design deliverable that starts at URS and flows through FAT, SAT, and IQ/OQ/PQ. For ODF lines, three pillars are particularly important: product targets, compliance goals, and data traceability.

1. URS: Start From Product, Compliance, and Data

The User Requirement Specification (URS) should clearly answer:

  • Target product envelope: film thickness range, dose loading, strip and pouch sizes, cutting pattern, and capacity targets (m²/hour, packs/hour).
  • Compliance objectives: relevant pharmacopoeial standards, stability study conditions, and expectations for data integrity (e.g., 21 CFR Part 11 readiness).
  • Traceability and interfaces: batch ID strategy, in-line coding requirements, and how the line will interface with MES/ERP or LIMS.

These requirements then flow down to specific equipment and interface needs across coating, drying, slitting, punching, and packaging modules.

2. FAT/SAT: Validate Against Method Cards and Batch Records

Instead of testing each module in isolation, FAT and SAT should be built around the intended production method cards and batch record templates. This includes:

  • Verifying critical cycle times and line rhythm—from solution preparation through coating, drying, cutting, and packaging.
  • Checking moisture and temperature control at the points that matter for film stability and seal integrity.
  • Confirming that traceability points (e.g., batch number, pouch printing, audit logs) are triggered and recorded as specified.
  • Running representative normal and abnormal scenarios, including alarms, rejections, and controlled stops/restarts.

By aligning FAT and SAT around real method cards, you reduce surprises when the line enters performance qualification.

3. IQ/OQ/PQ: From Installation to Performance Under Real Conditions

Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) should cover both equipment capability and the line’s behavior under realistic operating envelopes:

  • IQ: installation verification, utilities, safety systems, and documentation checks for each module and for the integrated line.
  • OQ: testing control ranges, interlocks, alarms, and rejection logic—including moisture, temperature, and speed ranges relevant to the product.
  • PQ: running full-scale batches to show that thickness, weight per unit area, dose uniformity, pouch quality, and moisture content remain within approved limits.

Critically, IQ/OQ/PQ should also demonstrate how the line handles exceptions: off-spec film sections, seal defects, label and code issues, and how these are detected, rejected, and recorded for audit purposes.

How HUANGHAI Supports End-to-End ODF Line Validation

HUANGHAI designs its ODF equipment and complete lines with validation and replication in mind, leveraging experience from multiple commercial installations.

Line-Level Solution Design

The Complete ODF Film Manufacturing Solution maps each process step—from solution preparation and coating on MJ150-L or MJ150, to slitting and high-speed pouching on modules such as MJF180—onto a coherent process and data architecture.

  • End-to-end process flow diagrams and line layouts.
  • Suggested URS structures that link product specs, capacity, and compliance targets.
  • Interface concepts for MES/ERP and batch record integration.

For an overview of HUANGHAI’s advanced manufacturing portfolio, including ODF lines and laser drilling solutions, see Advanced Pharmaceutical Manufacturing.

Validation Documentation and Templates

Drawing on completed projects, HUANGHAI can provide recommendations and sample structures for:

  • URS, FRS/FDS, and risk assessment documentation across the full ODF line.
  • FAT and SAT protocols aligned with method cards and batch records.
  • IQ/OQ template content, including checks for line-level interlocks and rejection logic.

At the packaging end, solutions based on modules such as MJF180 are designed to support audit logs and standardized batch reporting, simplifying regulatory submissions and inspections.

Scalable Logic From MJ150-L to MJ150

For coating and drying, HUANGHAI uses a consistent industrial logic from R&D through commercial production:

  • MJ150-L ODF Film Coating Machine is used to establish formulation windows, coating parameters, and drying logic under development and pilot conditions. Learn more about MJ150-L here: MJ150-L ODF Film Coating Machine.
  • MJ150 then scales up the same logic to commercial throughput, keeping control concepts and data structures compatible with the pilot line.

This “same logic, different scale” approach reduces re-validation risk when moving from pilot to commercial production or replicating lines across plants.

Conclusion: Treat Validation as Part of the Design

ODF line validation is most efficient when it is treated as a design deliverable, not an end-of-project task. By:

  • Defining a clear, quantified URS for the full line,
  • Building FAT and SAT around real method cards and batch records, and
  • Executing IQ/OQ/PQ that cover both capability and exception handling,

manufacturers can shorten time-to-approval and make it easier to replicate lines across sites.

HUANGHAI supports this journey with line-level solution design, validation documentation templates, and scalable equipment—from MJ150-L to MJ150 and MJF180-based packaging—so that product, process, and documentation stay aligned from URS through commercial output.
