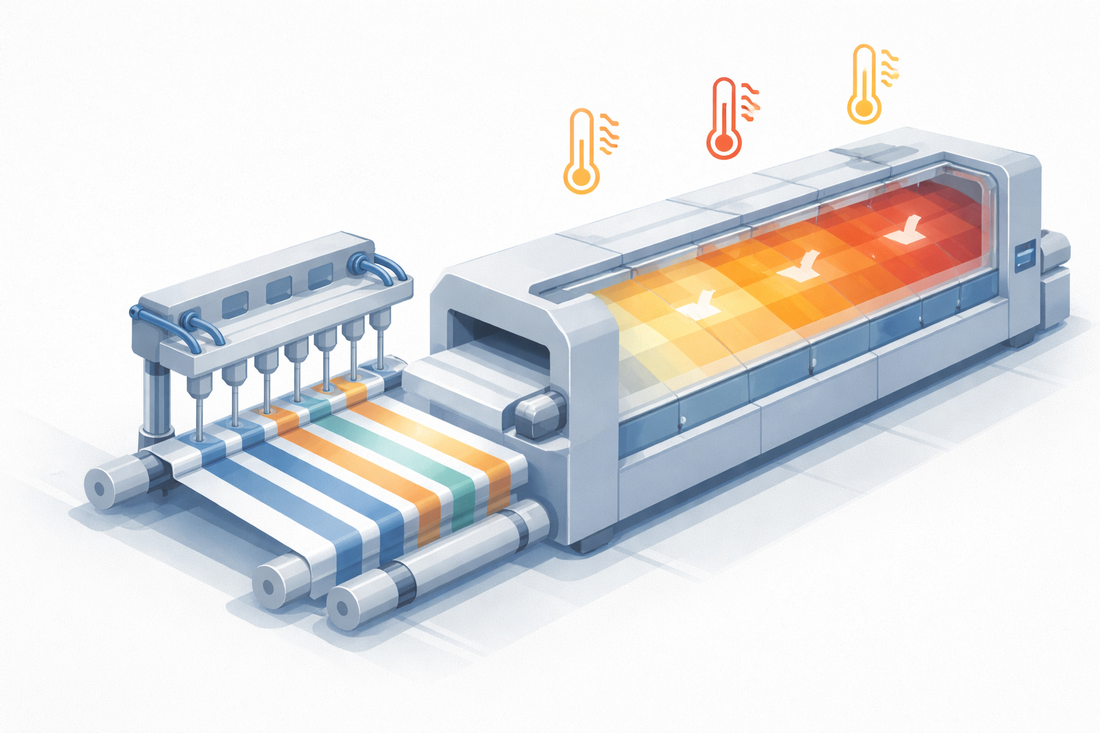

Isometric illustration of a high-tech ODF drying line with a moving film web passing through multiple hot-air zones, monitored by an engineer on a control panel to represent gradient hot-air drying.

Gradient Hot-Air Drying: The Key to ODF Yield & Stability

In oral dissolvable film (ODF) and transdermal patch manufacturing, many projects share the same story: the formulation is stable, coating conditions look fine, but the line still struggles with defects at the drying stage – cracking, curling, bubbles, residual solvent out of spec, or dose non-uniformity.

In practice, drying has become a hidden gate between R&D and robust, GMP-scale production. Treating it as “just heating” is no longer enough.

Where ODF Drying Goes Wrong

On many lines, the default approach is to chase speed with a simple one- or two-step temperature profile. That works for some simple films, but for complex ODFs and patches it can create a cascade of issues:

  • Surface skinning and trapped solvent – If the surface dries too fast, it forms a “skin” while the inner layer is still wet. Solvent and water cannot escape easily, leading to bubbles, residual solvent problems and internal stresses that later show up as cracks.
  • Mismatched drying and web tension – If drying shrinkage and web tension are not balanced, the film can curl, edge-lift or show thickness variation across the web.
  • Thermal damage from chasing throughput – Pushing temperature up to gain speed can compromise heat-sensitive APIs or excipients, undermining long-term stability even if initial appearance looks acceptable.

As projects move into registration batches and commercial campaigns, these problems become more visible – and more expensive to fix.

From “Heating” to Controlled Evaporation: The Gradient Concept

Patent CN119869871A captures a different approach: instead of treating drying as a static oven, it treats it as a controlled gradient evaporation process.

The idea is simple but powerful:

  • Use a natural hot-air gradient along the drying path, with milder conditions in the early zone and higher energy only in the later zones.
  • Allow the front section to handle gentle evaporation and film formation, reducing surface skinning.
  • Use the rear section to complete solvent removal and dimensional setting, with better control of shrinkage and stress.

Instead of “blasting” the web with heat and hoping for the best, the system is designed so that evaporation rate, web tension and film thickness evolve in a coordinated way along the tunnel.

HUANGHAI’s Gradient Hot-Air Drying Solution

HUANGHAI treats gradient hot-air drying as a core process package in its ODF and patch coating lines. The drying tunnel is not an add-on; it is engineered as an integral part of the coating system.

1. Stepwise Temperature Path

The drying channel is designed with a stepwise temperature profile:

  • Front section – gentle evaporation Lower effective temperature and airflow promote uniform surface formation and allow internal solvent to escape without creating a rigid skin.
  • Middle section – controlled acceleration Energy input increases as the film gains mechanical strength, supporting faster solvent removal without inducing severe gradients through the thickness.
  • Rear section – final drying and setting Conditions are tuned to complete residual solvent removal and stabilise dimensions before lamination, winding or cutting.

This layout forms a natural thermal gradient that is easier to scale and repeat compared with aggressive, single-point heating.

2. Synchronised Web Handling and Tension

The drying tunnel is paired with web handling and tension control designed for thin, sensitive films. By coordinating line speed, tension and drying profile, the system reduces:

  • Curling and edge lift.
  • Wrinkles and local stretching.
  • Thickness variation across the web.

The result is a film that not only looks uniform but also behaves consistently during slitting and packaging.

3. Predictable Scale-Up Windows

Because the gradient concept is built into the tunnel geometry and airflow design, process engineers can define a transferable parameter window – line speed, temperatures and tension – that scales from pilot to commercial equipment with fewer surprises.

Benefits for Yield, Residual Solvent and Stability

1. More Stable Yield

With controlled evaporation rather than harsh heating, typical defects such as bubbles, cracks, sticking and blocking are significantly reduced. That directly improves:

  • First-pass yield.
  • Rework and scrap rates.
  • Batch-to-batch reproducibility for registration and commercial production.

2. Easier Residual Solvent and Stability Control

A well-designed gradient tunnel helps align drying conditions with residual solvent specifications and stability requirements:

  • Solvent removal is more uniform across the web and through the thickness.
  • Heat-sensitive APIs and excipients see less thermal stress.
  • Stability studies are easier to interpret because the drying history is consistent and well-documented.

For regulatory submissions, this gives technical teams a clearer story linking process parameters to product quality.

3. More Predictable Scale-Up

When drying is treated as a controlled gradient, not a single oven temperature, engineers can:

  • Define operating windows that transfer from development tools to industrial lines.
  • Reduce the number of trial-and-error iterations at commercial scale.
  • Build robust justification for chosen temperature and speed ranges in validation documents.

Recommended Equipment and Patent Support

HUANGHAI implements gradient hot-air drying across its ODF and patch platforms, so the same logic applies from pilot batches to high-volume production.

MJ150-L – Pilot & Medium-Scale ODF / Patch Coating

The MJ150-L ODF Film Coating Machine is designed for pilot and medium-scale manufacturing. It allows teams to:

  • Optimise coating and gradient drying conditions for new ODF and patch formulations.
  • Study the impact of temperature profiles on yield, residual solvent and mechanical properties.
  • Generate data for registration, technology transfer and scale-up planning.

MJ150 – Commercial-Scale Production

For commercial throughput, the MJ150 ODF & Transdermal Patch Film Making Machine uses the same gradient drying concept in a larger envelope, supporting:

  • Continuous, high-yield ODF and patch production.
  • Stable drying windows that map back to pilot-line experience.
  • Integration with downstream slitting and packaging lines for end-to-end manufacturing.

Patent CN119869871A

The underlying drying approach is protected under Chinese patent CN119869871A , covering intelligent, continuous coating–drying–laminating–winding equipment for patches. This patent support demonstrates the engineering depth behind the gradient hot-air concept, beyond simple temperature recipes.

For a broader view of how these modules fit into complete lines, see our:

Conclusion: Drying as a Core Process Node, Not an Afterthought

Drying is not a secondary step. For ODFs and patches, it is a core process node that determines whether a project can run stably at scale. When drying moves from “rough heating” to controlled, gradient evaporation, three critical outcomes tend to improve together:

  • Yield.
  • Residual solvent performance.
  • Long-term stability.

This is the engineering value behind CN119869871A and HUANGHAI’s gradient hot-air drying approach. By embedding this logic into MJ150-L and MJ150 lines, we help customers cross the hidden gate between R&D and robust, commercial manufacturing.

If you are facing drying-related issues in ODF or patch projects, or planning a new line where drying is a known risk, our team can help design a gradient drying strategy tailored to your formulations and throughput.

Contact HUANGHAI to discuss gradient hot-air drying for your next ODF or transdermal patch project.
