One Film, Many Formulas: How Strip-Based Coating Turns Multi-Formula ODFs into Scalable Reality
Share
Fixed-dose combinations (FDCs), multi-ingredient functional ODFs (for example, multivitamins, probiotic blends, or herbal combinations) are no longer just a concept. Regulators and patients increasingly expect combination therapies and convenient single-dose formats – which means more projects where one oral film needs to carry more than one formula.
However, when these projects move from R&D to GMP-scale manufacturing, every extra process step adds variability, waste and validation complexity. The real question becomes: Can we put multiple formulas on one film in a way that is stable, efficient and truly scalable?
HUANGHAI’s strip-based multi-formula coating approach, powered by patent CN117323228A , was designed to answer exactly this question.
Trend: One Film, Multiple Formulas
Market demand is shifting from simple, single-API ODFs toward:
- Fixed-dose combinations (FDCs) that combine multiple actives in one strip.
- Multi-ingredient functional ODFs – for example, vitamins plus probiotics, or botanicals plus minerals.
- Segmented films where different lanes or zones carry different strengths or ingredient sets.
From a formulation point of view, many of these concepts are achievable in the lab. The bottleneck comes later: how to turn a smart bench-top idea into a repeatable, GMP-ready manufacturing process.
Pain Points in Conventional ODF Manufacturing
Traditional ODF production often follows a familiar sequence: wide-web coating → edge trimming → longitudinal slitting → cross-cutting. This works well for single-formula films, but when you try to run multiple formulas in parallel, several problems are amplified:
- Significant material waste: High-value APIs and excipients end up in edge trims and offcuts during slitting and re-shaping.
- Consistency risks: Multiple coating runs or secondary lamination steps can introduce dosage variation, lane-width drift and edge defects.
- Complex validation: More steps mean more critical parameters to define and monitor, making batch-to-batch variation harder to explain during audits.
In other words, the more you rely on secondary slitting and reshaping to “create” multi-formula strips, the harder it becomes to control yield, uniformity and regulatory risk at commercial scale.
This is precisely the pain point targeted by CN117323228A: using a strip-based coating structure so that multi-formula lanes are formed directly in the coating step, instead of being carved out later.
HUANGHAI’s Answer: Strip-Based Multi-Formula Coating

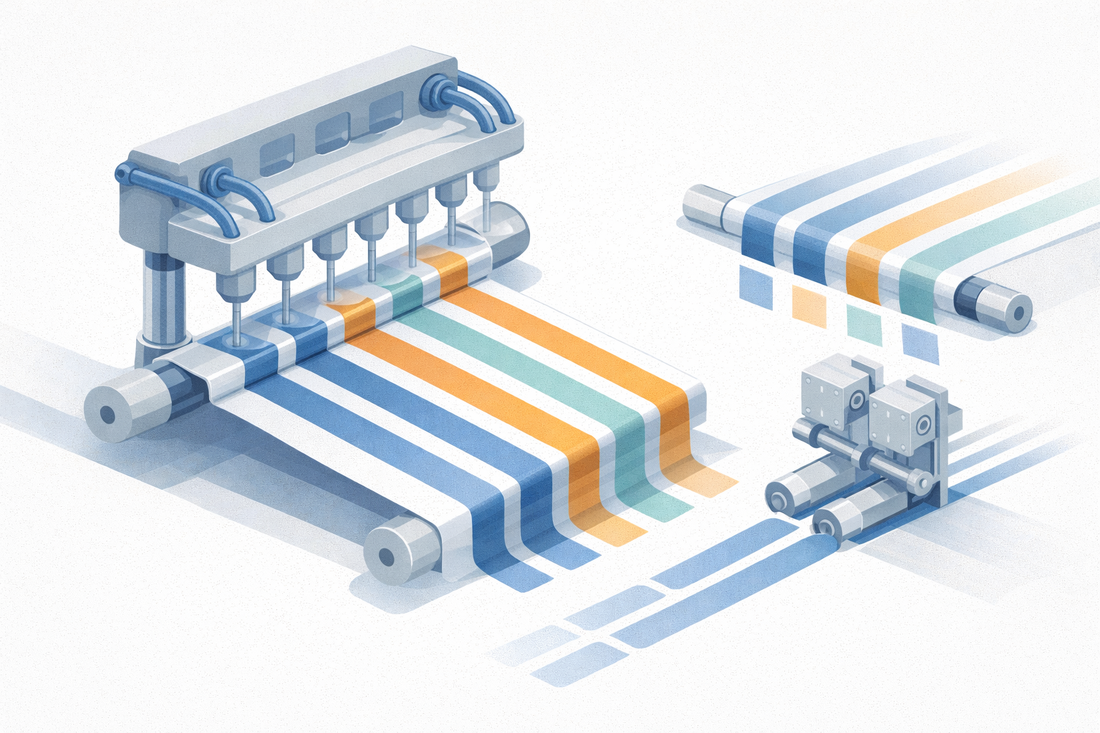

HUANGHAI’s multi-formula strip coating solution is built on the patented Slitting-Type Film Coating Device (CN117323228A) . Instead of coating a full-width web and then cutting it down, the system is engineered to shape each strip at the coating stage itself.
1. Multi-Channel Feed and Structured Strip Geometry
At the heart of the system is a multi-channel feed manifold with dedicated supply grooves for each formulation. Each channel defines its own target lane on the substrate, including width and spacing.
This design allows:
- Different formulas to run in parallel lanes on the same web.
- Strip width to be geometrically constrained by the coating hardware, not left entirely to downstream slitting.
- Adjustments to be made at the coating head (lane width, pattern, layout) instead of adding more post-processing steps.
2. Less Reliance on Downstream Slitting
Because the film already emerges from the coater in a structured, multi-lane layout, downstream operations can focus on simple, aligned cutting and packaging instead of heavy reshaping. This directly reduces:
- Edge trim waste and “sacrificed” lanes.
- Opportunities for lateral strip drift and lane-width variability.
- The number of critical control points that must be validated and monitored.
3. Better Fit for GMP Scale-Up
By removing redundant steps from the process, the strip-based approach makes the manufacturing route:
- Shorter: Fewer unit operations and less handling.
- Easier to validate: Key parameters are concentrated at the coater and dryer, where they can be tightly controlled.
- More robust: Lane width and dosage alignment are maintained by mechanical design as well as process control.
What This Means for Your ODF Project
1. Lower Material Loss
With multi-formula lanes already shaped at the coating step, you no longer “create” strip geometry by cutting away large portions of the film. This is especially important for high-value APIs and specialty excipients, where edge scrap can become a major cost driver.
2. More Stable Content and Strip Width Uniformity
When each lane is defined by hardware geometry and controlled coating parameters, it is easier to:
- Keep strip width within tight tolerances across the full roll.
- Preserve dosage ratios between lanes (for example, API A on the left, API B on the right).
- Maintain a stable process window during scale-up from pilot runs to commercial campaigns.
3. Fewer Steps, Fewer Stops
A shorter, more integrated process means:
- Fewer intermediate rewinds and re-threading operations.
- Less time spent on cleaning and changeover between runs.
- Validation packages that are easier to explain to regulators, with a clear chain from formulation to film to sachet.
Recommended Equipment and Configurations
HUANGHAI’s strip-based multi-formula coating technology is implemented across both pilot-scale and commercial systems, so you can maintain the same logic from development through scale-up.
MJ150-L – Pilot and Medium-Scale Multi-Formula Coating
The MJ150-L ODF Film Coating Machine is designed for pilot-scale and medium-scale ODF production. It is ideal for:
- Establishing multi-formula coating windows and strip layouts.
- Optimising lane widths, viscosities and drying logic under controlled conditions.
- Preparing data and samples for registration, technology transfer and partner evaluations.
MJ150 – Commercial-Scale Multi-Formula ODF and Patch Production
For commercial output, the MJ150 ODF & Transdermal Patch Film Making Machine inherits the same core coating logic and supports high-throughput, multi-lane production. It is engineered for:
- Pharma-grade ODF combination products.
- Solvent-based transdermal patches using similar strip-based concepts.
- Integration with downstream slitting and high-speed pouching lines.
For a broader view of how these systems fit into a full line, see:
Conclusion: Making “One Film, Many Formulas” an Engineering Reality
The true competitiveness of multi-formula ODFs is not just about whether a formulation can be created in the lab. It comes from turning that formulation into a short, stable and verifiable manufacturing process.
HUANGHAI’s strip-based coating innovation, backed by patent CN117323228A, shifts complexity upstream into a structured coating architecture – reducing waste and process noise in the downstream steps. With MJ150-L and MJ150 working as a coherent pair, “one film, many formulas” becomes less of an experiment and more of a scalable, GMP-ready production strategy.
If you are evaluating multi-API or combination ODF projects and want to reduce risk during scale-up, our team can help design a multi-formula coating route tailored to your products and regulatory pathway.
Contact HUANGHAI to discuss how strip-based multi-formula coating can support your next ODF line.
